4-Core + Grounding Power Cable
4 Cores Earth Power Cable
The 4-core+1 grounding structure is designed for applications that require grounding wires according to customer requirements. These 4-core and grounding cables are usually called 4 cores earth power cable (insulated with 0.6/1000v voltage) or IEC60502 4-core and grounding cable.
As a leading XLPE cable manufacturer in China, Hold one provides cost-effective 4mm/6mm/10mm/16mm 4-core and ground cables, all made of high-quality materials, please feel free to contact!

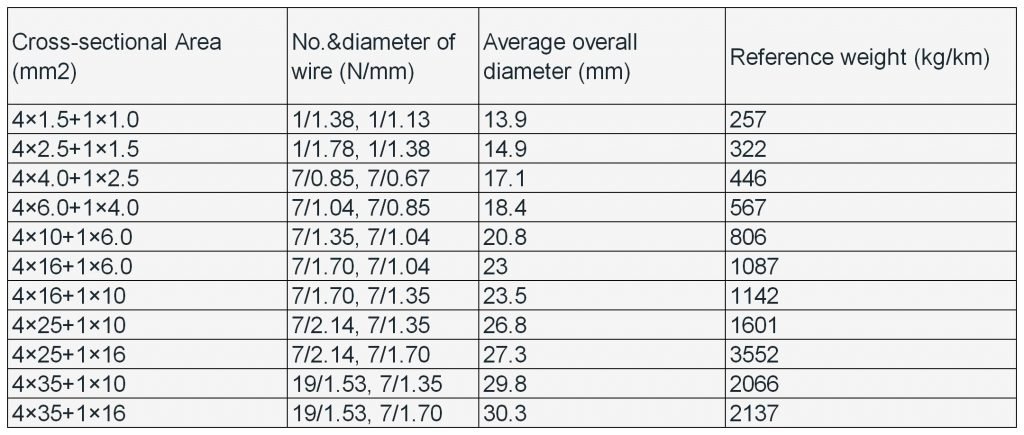

Parameter
Standard
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards, such as BS, DIN and ICEA upon request
Font size: 10.0000pt; mso-font-kerning: 0.0000pt;”>PVC type ST2 to IEC 60502, black
Technical data
Rated voltage: 0.6 / 1 kV
Maximum conductor temperature: under normal (90 OC), emergency (130 OC) or short circuit conditions not exceeding 5 s (250°C).
Minimum ambient temperature 0 OC, after installation and only when the cable is in a fixed position
Minimum bending radius: 12 x cable O.D
Application Of 4 Cores +Earth Power Cable
Used in fixed installation of power transmission and distribution systems, tunnels and pipelines
For situations that should not be subjected to external mechanical forces
